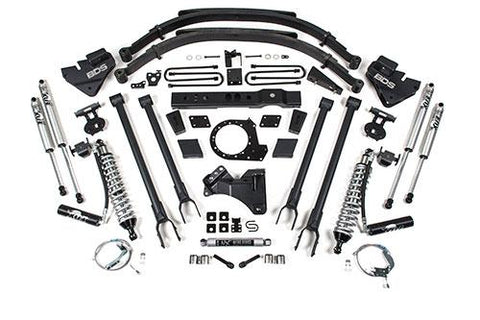

These 8" 4-link systems are built around
BDS's tried and true 4-link conversion offering improved stability, strength and caster control during wheel travel. The 4-link brackets are built from 1/4" steel and key off the factory frame bracket and transmission crossmember for extra strength. Full length 6" ProRide coil springs are used for the additional ride height and are paired with your choice of BDS NX2 series gas shocks or the premium FOX 2.0 IFP performance gas shocks for a smooth ride on any terrain. A forged drop pitman arm and heavy duty track bar relocation bracket are supplied to correct steering angles and recenter the front axle. Also supplied for the front are bump stop extensions to limit suspension compression, sway bar drop brackets to correct the sway bar positioning, and brake line relocation brackets.
The 2017 models use a new front driveline design that requires correction at 8" of lift and above to allow for use of 4WD at any speed. To do this BDS supplies a high strength transfer case indexing ring to rotate the front output of the transfer case down to improve the front driveline operating angle. The indexing ring uses ARP studs and includes new mounting hardware. Also supplied is a heavy duty replacement transmission crossmember to allow additional clearance.
The rear is lifted with full replacement BDS Glideride leaf springs to provide the lift needed to level the stance. These springs are a 4-leaf design with integrated overload leaf for extra load capacity. They come fully assembled with bushings installed for ease installation and a smooth ride on and off-road. Finishing off the rear of this kit are a pair of matching NX2 or FOX 2.0 gas shocks to compliment the front setup for all around impressive performance. These new 8" 4-link systems allow for clearance of up to 40" tires. Take your 2017 Super Duty to the next level with BDS Suspension.
- Tire & Wheel Combinations
- 38 x 13.50 w/17 x 10 and 5" back spacing
- 40 x 13.50 w/17 x 10 and 5" back spacing
*Trimming may be required*
- Est. Installation: 8-10 hours
- Difficulty Level (easy 1 - 5 complicated): 4
