- 100% Bolt on
- 10” Spindle Kit Front differential is dropped a full 10” to maintain proper CV axle. angles
- Impact struts to distribute front suspension impact loads through frame
- Utilizes the factory front bump stops for superior ride quality
- Designed to work with factory stabilitrack and AWD models
- Semi Gloss black powder-coat for a long lasting great look
- Fabricated Steel Blocks (Non Casted) w/ Grade 8 U Bolts
- One piece strut extension no need to remove factory strut
- No cutting on front differential or factory bump stops
- Cross-member are constructed of 1/4 “ thick steel
- Lifetime Warranty against manufactures defects
- No exhaust modification required

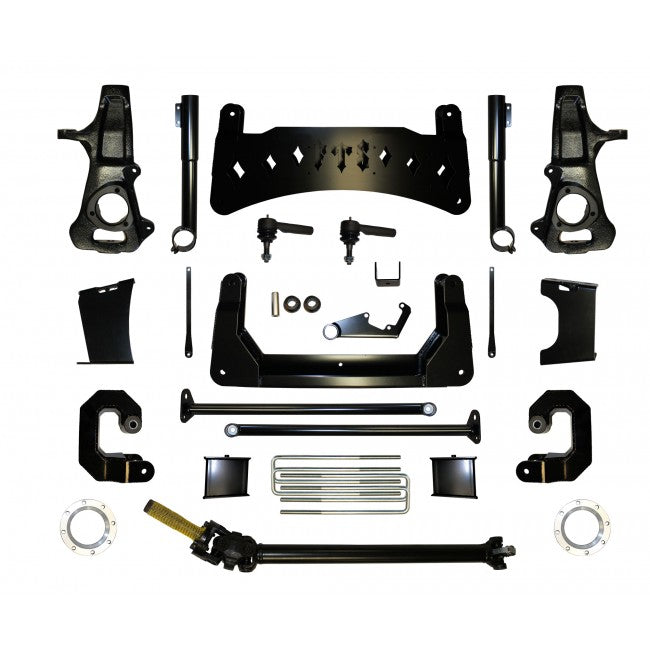

Kit Includes the following:
84620 2008-2015 10" CHEVY / GMC 1500 4WD BASIC KIT
C8460-2 COMPONENT BOX 1 W/ HARDWARE
C8460-9 COMPONENT BOX 2
C8544-10 REAR SHACKLE KIT/ BLOCK KIT
C8460-S LEFT KNUCKLE/ RIGHT KNUCKLE
84827 STEEL BRAIDED BRAKE LINES
Max Recommended Tire Size 37“
Max Recommended Wheel Width 12”
Required 17” or larger Wheel with no more than 5” Backspace
