Cognito 3 Inch Standard Leveling Lift Kit for 19-24 Sierra 1500 and Silverado 1500 2WD/4WD trucks. We've bundled everything you need in a leveling kit for your GM 1500 with high quality Cognito components.

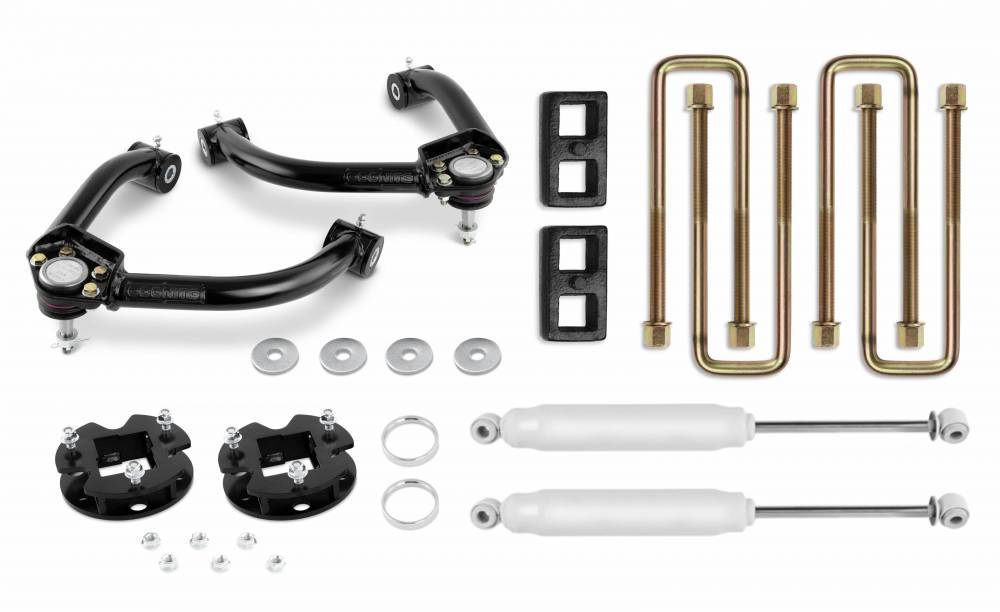

There's no guesswork and you save with the bundled price. Cognito components are engineered, manufactured and assembled in the USA. The Cognito 3 Inch Standard Leveling Lift Kit includes the Cognito Standard Upper Control Arm Kit, 1.5 Inch Strut Spacer Kit, .5 Inch Preload Spacer Kit, 1.5 Inch Block and U Bolt Kit and Standard White Body rear shocks- all with hardware included.
The Cognito Standard Upper Control Arms are built with a modified ball joint angle to eliminate travel limitations of the ball joint in lifted applications. This design also eliminates the need to cut the service perch off of the truck if they are used as part of our Cognito package or as a stock replacement.
The 1.5 Inch Strut Spacers are constructed out of heavy duty steel and are finished with a durable semi-gloss black power coating. The .5 Inch Steel Preload Spacers are finished with a silver zinc plated finish.
The Cognito 1.5 Inch Block and U Bolt Kit includes 1.5 Inch tall powder coated semi-gloss black cast steel blocks and heavy duty zinc plated U Bolts. Standard White Body extended length rear shocks are also included in the kit.
- Cognito Standard Upper Control Arm Kit (110-90864)
- 1.5 Inch Strut Spacer Kit
- .5 Inch Preload Spacer Kit
- Cognito 1.5 Inch Block and U Bolt Kit
- Standard White Body Rear Shocks (210-90634 x2)
- Cognito Sticker Pack
- Arms have corrected ball joint angle
- Made with bolt-in, maintenance free, high angle, heavy duty ball joints
- Enhances the truck's appearance and reduces the factory nose down rake
- Maintains a minimum of 3 Inch droop travel for more comfortable ride quality
- Yields nominal 3 Inch lift at the front wheels and 1.5 Inch lift at the rear wheels
- Fits up to 34 inchx12 Inch tire and 9 inch wide wheel with 5.75 Inch back space
- 4 hour installation, no cutting or welding
Warning!-This product is not compatible with vehicles equipped with ARC Adaptive Ride Control (includes all 1500 Denali models). The Cognito Standard Upper Control Arm was not built with ARC compatibility and if installed will negate the ARC functionality of your 1500 Denali vehicle.
